8Sinn Riser Plate II

8Sinn Riser Plate II

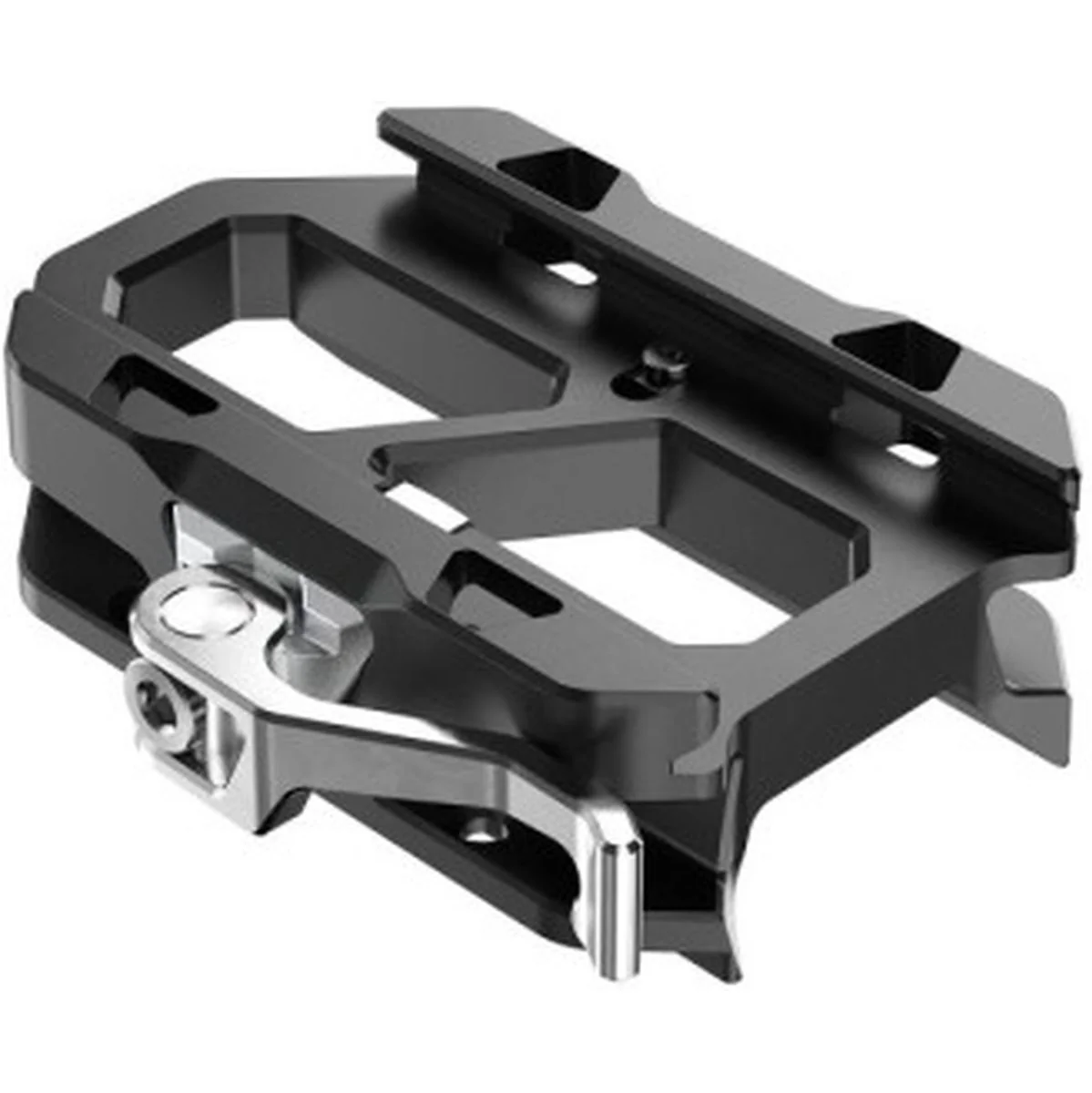

The 8Sinn Riser Plate II is a component of the 8Sinn baseplate system designed to help position the optical center at 85 mm in your camera setup. It is intended for use with the 8Sinn 15 mm Baseplate, which includes a compatible opening for installation.

Compared with the Riser Plate I, this version is compatible with the specially designed 8Sinn Arca Swiss Plate for Riser Plate II. It features a release pin on one side and a lever on the other, allowing for easy adjustment without getting in the way of normal camera operation. The Arca Swiss plate is locked securely on both sides for added protection and stability.

Compatible camera setups

With an 8Sinn cage, 15 mm baseplate, Riser Plate II, and the matching 8Sinn Arca Swiss Plate for Riser Plate II, the optical center can be achieved with the following camera models:

• 8Sinn Z CAM E2-S6/F6/F8 cage
• 8Sinn Z CAM E2 cage
• 8Sinn Sony a7III / a7RIII cage
• 8Sinn Sony A7RIV cage
• 8Sinn cage for Sony a7SIII
• 8Sinn BM Pocket Cinema Camera 4K / 6K cage
• 8Sinn BM Pocket Cinema Camera 4K / 6K half cage
• 8Sinn cage for Red® Komodo
• 8Sinn cage for Panasonic GH6
• 8Sinn Panasonic S1H cage
• 8Sinn cage for Canon EOS R5C
• 8Sinn cage for Leica SL2 / SL2-S

When used without a cage, but with the 15 mm Baseplate, Riser Plate II, and the matching 8Sinn Arca Swiss Plate for Riser Plate II, the optical center can be achieved with the RED V-Raptor.

Features

• Safety locks on both sides
• Quick-release system
• Compatible with 8Sinn Arca Swiss Plate for Riser Plate II
• Compatible with DJI R Quick-Release Plate on the upper side
• Made from aluminium
• Not compatible with the 8Sinn Universal Arca Swiss Plate
• Dimensions (H x L x W): 23.2 x 49 x 78 mm
• Weight: 63 g

In the box

• 1x 8Sinn Riser Plate II
