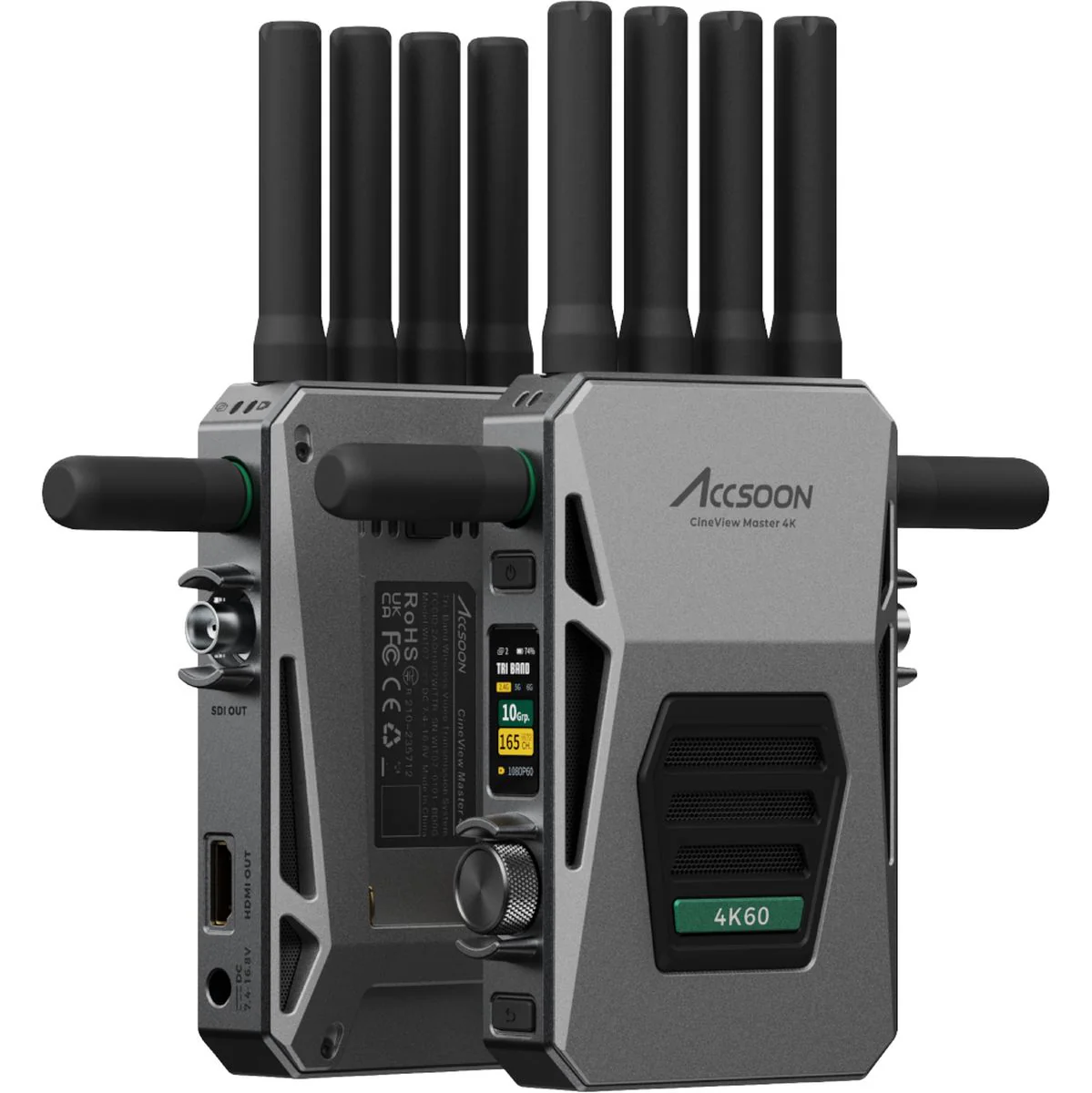

Accsoon Cineview Master 4K Wireless Video Transmission Set

Accsoon CineView Master 4K Wireless Video Transmission Set

Take wireless video monitoring to a new level with the Accsoon CineView Master 4K. Designed for demanding production environments, this advanced system delivers true 4K 60P transmission with ultra-low latency and a powerful tri-band connection across 2.4 GHz, 5 GHz, and 6 GHz. With a long transmission range and support for multiple monitoring devices, it is built for efficient, flexible workflows on set.

Key Features

• True 4K 60P wireless video transmission
• Tri-band operation: 2.4 GHz, 5 GHz, and 6 GHz
• DFS support for improved wireless performance
• Latency as low as 25 ms
• Transmission range up to 2.5 km in optimal conditions
• Monitor on up to 5 devices
• HDMI and SDI input on the transmitter
• HDMI loop-out and MFi-certified USB video output for iPhone/iPad
• Simultaneous SDI and HDMI output on the receiver
• Compatible with the Accsoon SEE app for monitoring
• 8K high-performance A/V processor
• Power options via DC input or NP-F batteries
• Compatible with Accsoon V-mount battery adapter
• Aluminium alloy housing with intelligent quiet heat dissipation
• 1.05-inch full-colour LCD display

Transmitter (TX) Highlights

• 8K high-performance A/V processor
• Accsoon RTMS 4.0 proprietary protocol
• HDMI and 3G SDI input
• HDMI loop-out and USB video output to iOS devices
• Supports 4K HDMI input up to 60p
• Embedded audio via HDMI and SDI
• Average power consumption: 6.5 W
• Latency: under 25 ms at 1080p, under 35 ms at 4K
• Compatible with NP-F550, NP-F750, and NP-F970 batteries

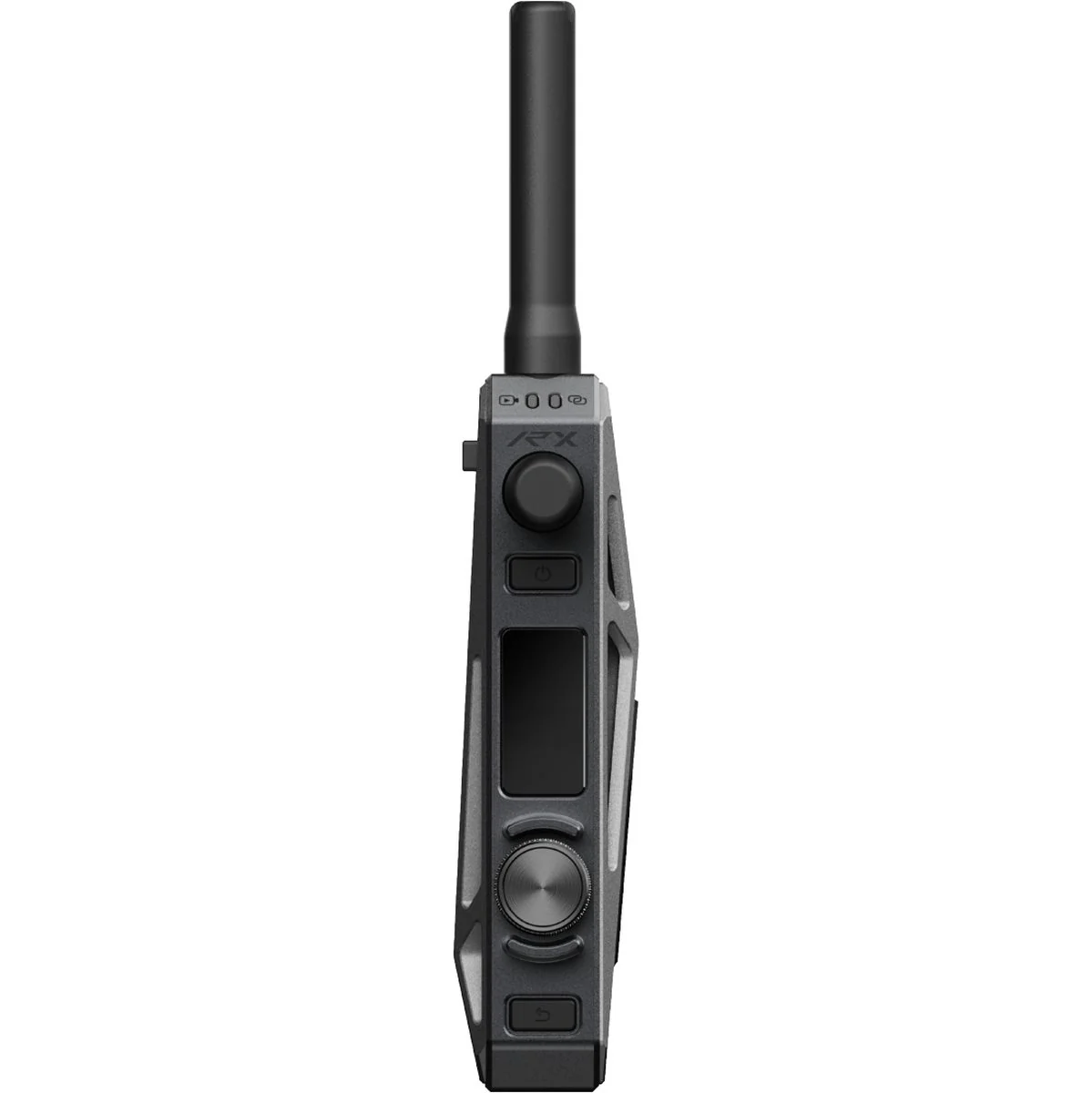

Receiver (RX) Highlights

• 8K high-performance A/V processor
• Accsoon RTMS 4.0 proprietary protocol
• HDMI and 3G SDI output
• 4K HDMI output up to 60p
• Simultaneous embedded audio support
• Average power consumption: 5.0 W
• Latency: under 25 ms at 1080p, under 35 ms at 4K
• Compatible with NP-F550, NP-F750, and NP-F970 batteries

What’s in the Box

• 1x Accsoon CineView Master 4K transmitter
• 1x Accsoon CineView Master 4K receiver
• 1x cold shoe mount adapter
• 8x 2.4 GHz / 5 GHz antenna
• 4x 6 GHz antenna
• 1x USB-C to USB-C cable
• 1x USB-C to Lightning cable
• 1x hex key
• 1x user manual
