Feelworld H5 5.5 inch 12G SDI Monitor
Feelworld H5 5.5-inch 12G SDI Monitor
The Feelworld H5 is a compact 5.5-inch monitor designed for professional video work, including cinema, broadcast, and live production. With support for up to 2160p/60 and 12G-SDI single-link technology, it delivers a fast, reliable signal path for high-resolution, high-frame-rate workflows.
Built for demanding shoots, the H5 supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI input monitoring, while also offering simultaneous loop-through output for smooth integration into your production setup. Whether you're working on set or in the field, it provides a sharp, stable viewing experience with future-ready connectivity.
The 5.5-inch IPS display offers a full HD 1920 x 1080 resolution, rich 10-bit color, and a wide 160° viewing angle for clear visibility from multiple positions. With 1.07 billion colors, DCI-P3 and REC709 color spaces, and factory calibration using CALMAN software, the monitor is built to deliver accurate, consistent color reproduction.
A peak brightness of 1200 cd/m² makes the screen easy to view in bright indoor and outdoor environments. The rugged CNC aluminum housing adds durability without unnecessary bulk, making it a practical choice for mobile productions and varied shooting conditions.
For fast operation on set, the H5 includes three customizable shortcut keys on top, allowing you to assign your most-used functions for quick access. The touchscreen interface also makes menu navigation intuitive, with tap and swipe controls, plus an additional scroll wheel for precise handling.
Key Features
- 5.5-inch IPS display with 1920 x 1080 resolution
- Supports up to 2160p/60 video
- 12G-SDI single-link technology
- Compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI
- 1.07 billion colors with 10-bit color depth
- 1200 cd/m² brightness for excellent visibility
- Wide 160° viewing angle
- Factory color calibrated with CALMAN software
- DCI-P3 and REC709 color space support
- Touchscreen control with additional scroll wheel operation
- Three customizable shortcut buttons
- Durable CNC aluminum housing
Specifications
- Screen size: 5.5" IPS
- Resolution: 1920 x 1080 pixels
- Pixel pitch: 0.063(H) x 0.063(V) mm
- Color depth: 10-bit (8+2 bit)
- Aspect ratio: 16:9
- Brightness: 1200 cd/m²
- Contrast ratio: 1000:1
- Backlight: LED
- Viewing angle: 80°/80° (L/R), 80°/80° (U/D)

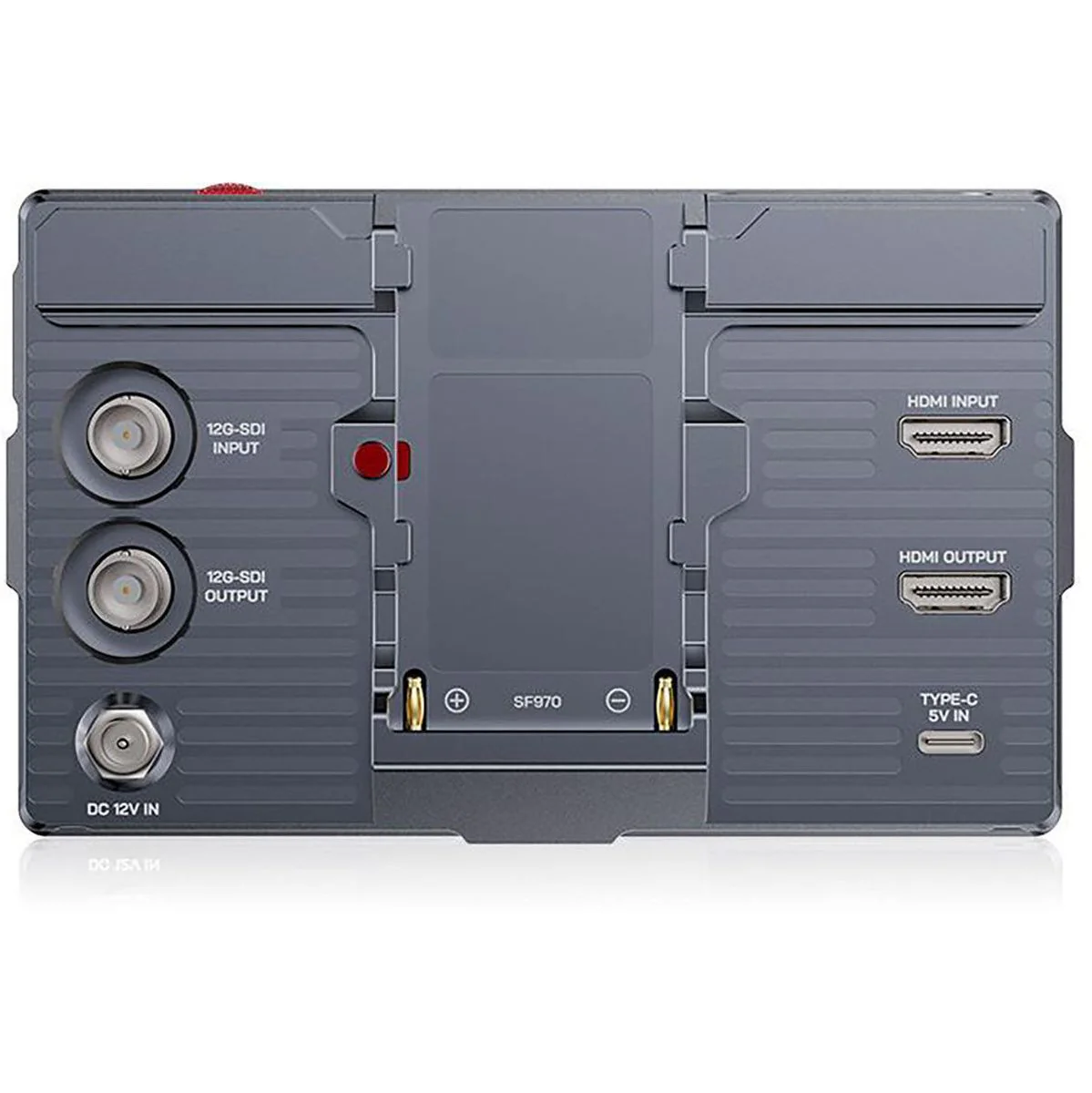

- Inputs: 1x 12G-SDI, 1x HDMI 2.0, 1x USB-C 5V, 1x power input
- Outputs: 1x 12G-SDI, 1x HDMI 2.0
- Audio: 3.5 mm stereo headphone output
- Dimensions: 145.25 x 90.3 x 30.85 mm
- Weight: 306 g
Package Contents
- 1x Feelworld H5 5.5-inch 12G SDI Monitor
Original: $575.75
-65%$575.75
$201.51More Images
