FXLion V-Lock To B-Mount Adapter

Fxlion V-Lock to B-mount Adapter: A Comprehensive Overview

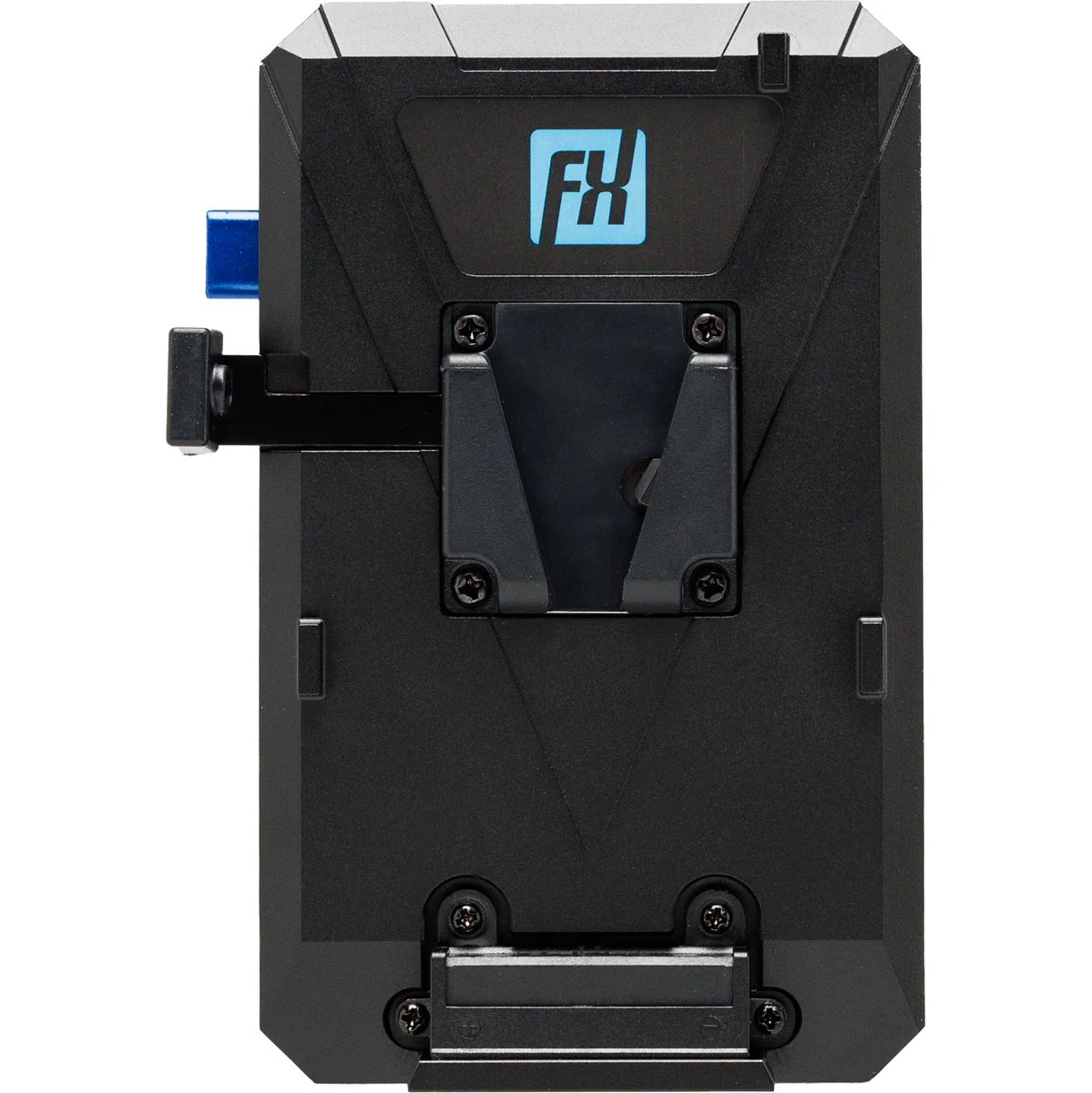

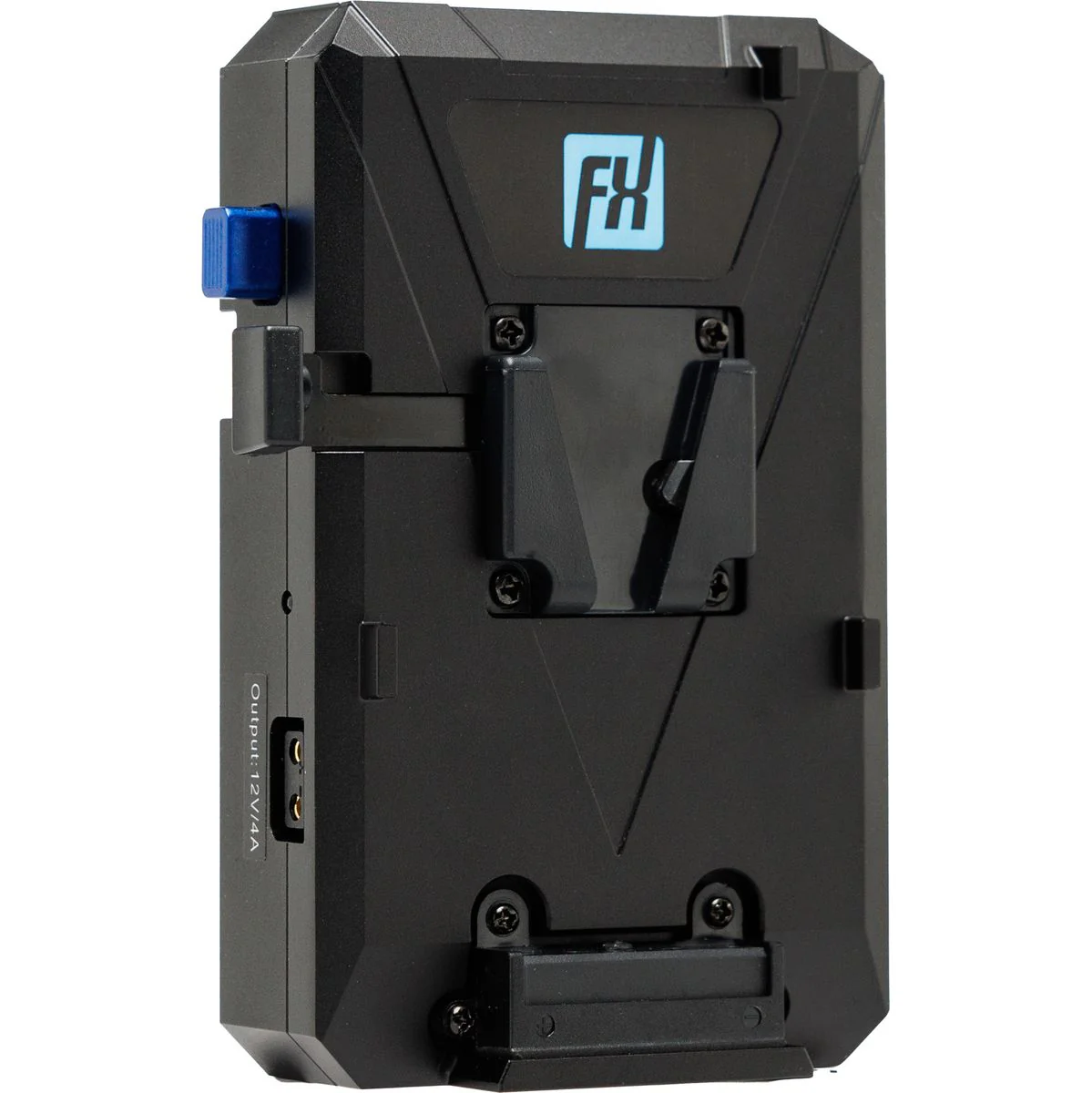

The Fxlion V-Lock to B-mount adapter is a crucial piece of equipment for professionals looking to take their filming experience to the next level using the ARRI Alexa35 camera. The adapter, refined and shaped through CNC metalworking, displays a compact structure that’s easy to maneuver. It has the capacity to operate with a 14.8 V or 26 V battery, providing an output strength of 30 V/6 A 180 W to power the Alexa35 camera. Importantly, it features a low-voltage warning indicator, designed to alert the user when the battery voltage falls critically low. This is a significant feature because it helps users avoid unexpected shutdowns while filming, thereby offering to replace the battery on time.

This adapter that morphs from a V-lock to a B-mount also comes with an additional feature - two 12V constant D-Tap output ports. This essentially means that the device not only serves the camera but can also power monitor equipment, thus enhancing its versatility.

Key Features of the Fxlion V-Lock to B-mount Adapter

• Capable of transitioning from a V-Lock adapter to a B-mount adapter
• Ideal for use with the ARRI Alexa35 camera
• Features an input range of 10 ~ 29.4V
• B-mount output: 30V/6A (maximum)

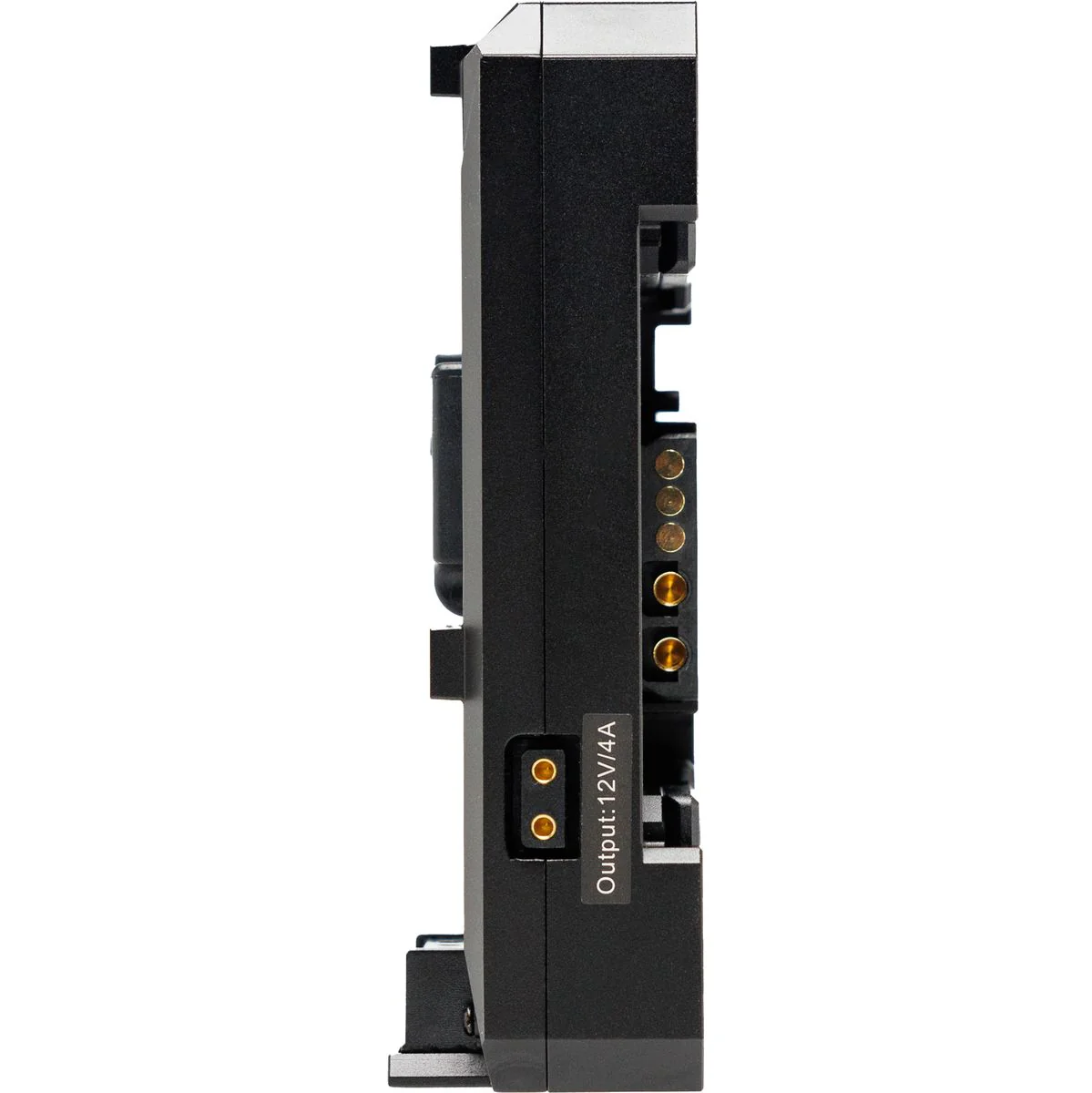

• Offers double D-Tap output: 12V/4A (maximum)
• Dimensions measure at (LxWxH): 146.5 x 102.5 x 42.8 mm
• Weighs just 380 grams, ensuring light-weight handling

Contents of the Package

Inside the box, you only get the vital component itself - 1 Fxlion V-Lock to B-mount adapter.
