Hikmicro Condor CH35L Handheld Thermal

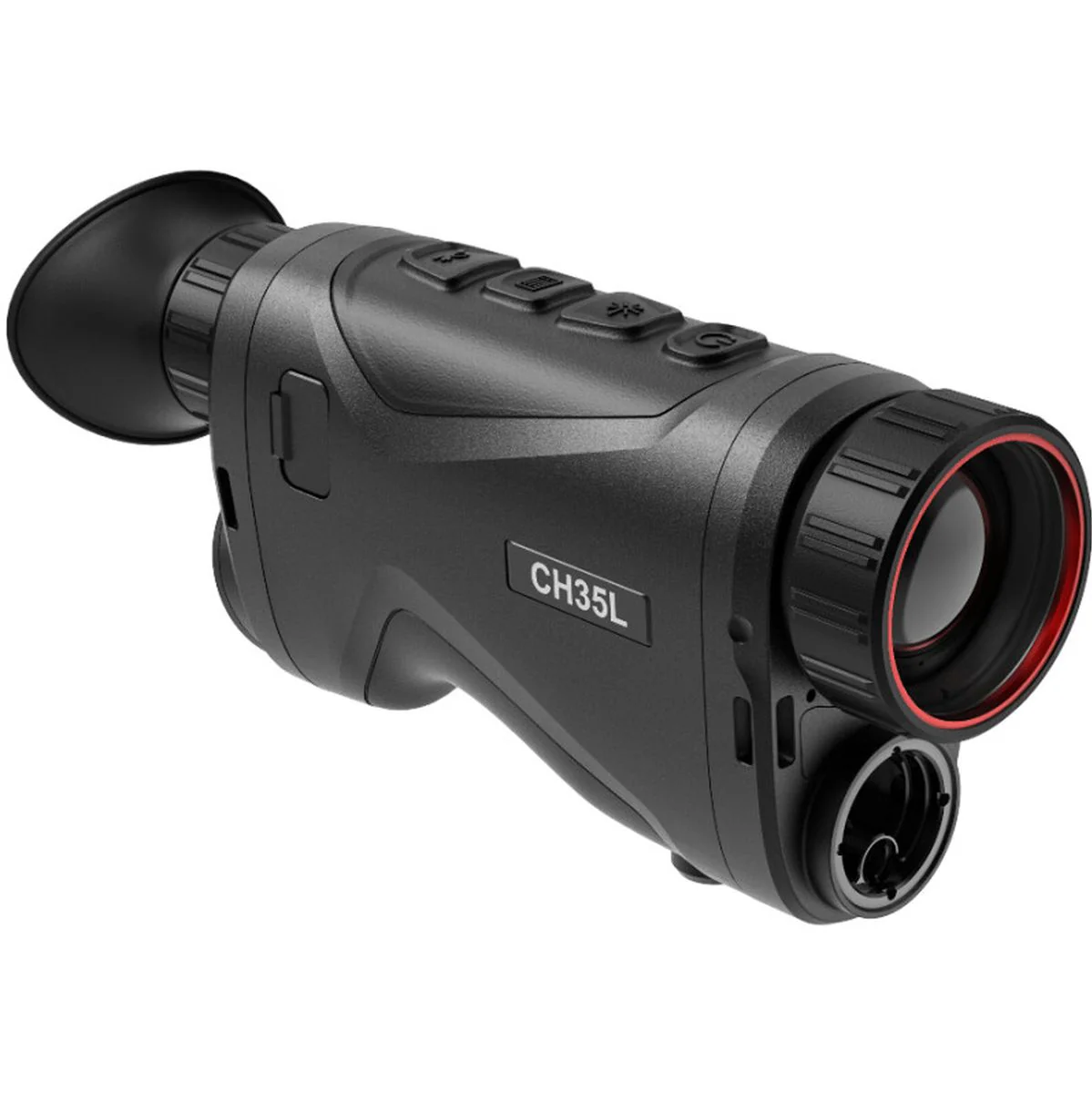

Hikmicro Condor CH35L Handheld Thermal Monocular
The Hikmicro Condor CH35L is built for users who need clear thermal imaging in wide, open environments. With a 3.5x base magnification, 35 mm lens and a 384 x 288 thermal sensor, it delivers a balanced blend of range, detail and viewing comfort. The 13.1 m field of view at 100 m makes it well suited for scanning larger areas with confidence.
Thanks to its highly sensitive NETD value of less than 20 mK, the CH35L is able to reveal fine thermal differences across a variety of weather and lighting conditions. Hikmicro’s advanced image processing enhances contrast and detail, while Image Pro 2.0 and Zoom Pro help optimize both the native view and digital zoom performance for a sharper, more refined picture.
A built-in laser rangefinder adds another level of precision, allowing distances of up to 1,000 m to be measured with ±1 m accuracy. The compact housing is designed for comfortable one-handed use, with a soft-touch grip that suits both left- and right-handed users. Its magnesium alloy body keeps the device lightweight yet durable, while the magnetic lens cap offers quiet, secure protection for the optics.
Key Features
- VOx uncooled thermal detector
- 384 x 288 resolution
- 50 Hz refresh rate
- 12 μm pixel pitch
- 8 μm to 14 μm response waveband
- NETD less than 20 mK (@25°C, F#=1.0)
- 35 mm F1.0 lens
- Detection range up to 1800 m
- Focus ring control
- Field of view: 7.5° x 5.6° / 13.1 m x 9.7 m at 100 m
- Minimum focus distance: 3.5 m
- Magnification: 3.5x to 28.0x (8x)
- 1024 x 768, 0.39-inch OLED display
- Brightness and contrast adjustment
- Color palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC modes: Auto, Manual, External Correction
- Exit pupil: 4 mm
- Eye relief: 15 mm
- Diopter range: -5D to +3D
- Image Pro and tone adjustment support
- IP67 protection rating
- Weight: 400 g without battery
- Dimensions: 184.9 x 53 x 87.8 mm
- Operating temperature: -30°C to 55°C
- Video recording and snapshot capture
- Hotspot, standby mode, PIP and hot track functions
- Range measurement and audio recording
- 64 GB built-in memory module
- Replaceable, rechargeable Li-ion battery
- Up to 4.5 hours of continuous use with one battery
- Up to 6 hours of operation with rangefinder and hotspot enabled using three batteries
- USB Type-C power input: 5V DC, 2A with external power support
In the Box
- 1x Hikmicro Condor CH35L Handheld Thermal Monocular
- 3x Battery
- 1x Hand strap
- 1x Battery charger
- 1x Type-C cable
- 1x Lint-free cloth
- 1x Protective case
- 1x Quick start guide
