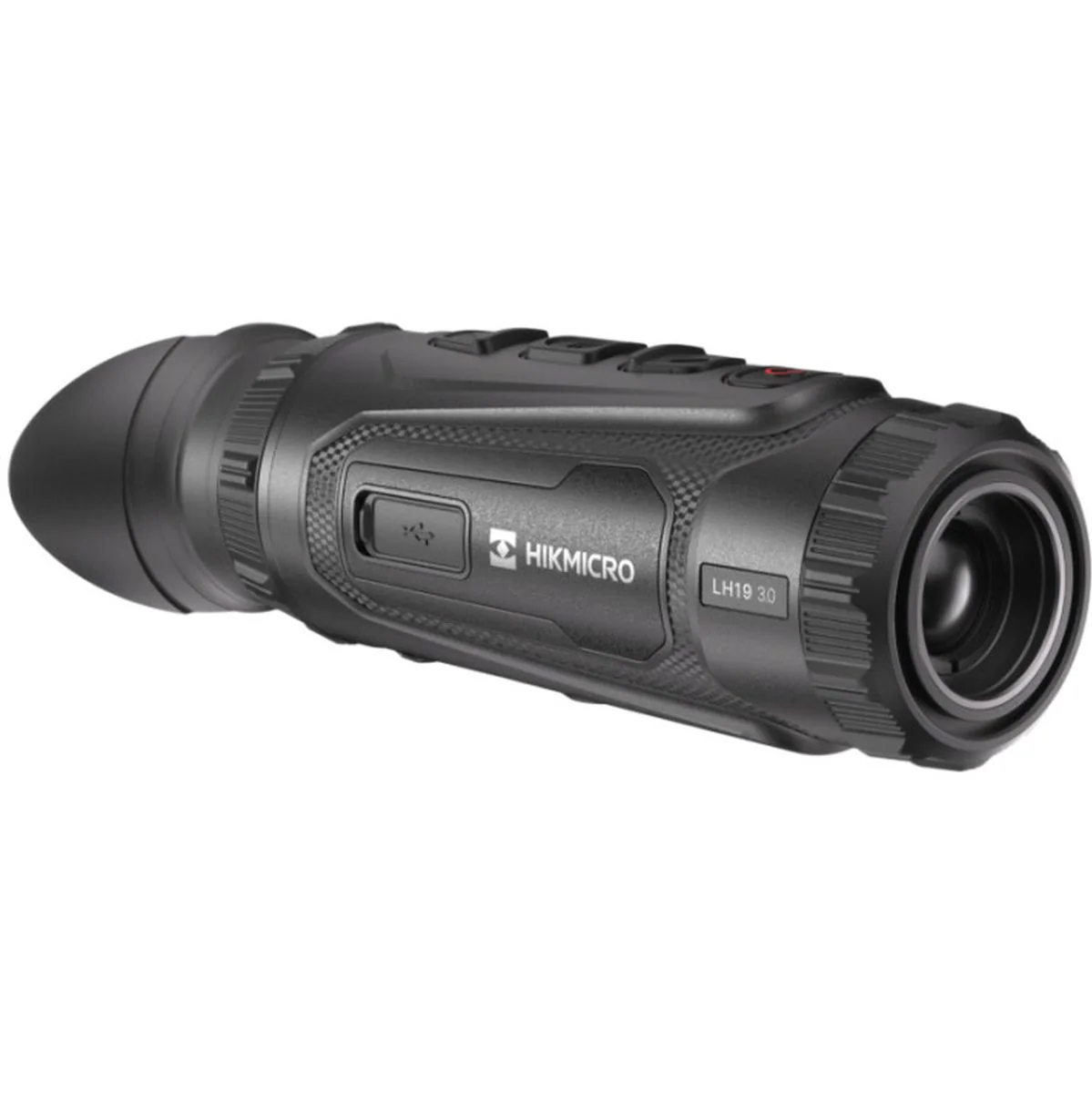

Hikmicro LYNX 3.0 LH19 Handheld Thermal

Hikmicro LYNX 3.0 LH19 Handheld Thermal Monocular

Compact, lightweight, and built for demanding outdoor use, the Hikmicro Lynx 3.0 LH19 delivers advanced thermal imaging in a highly portable form. Designed for hunters and outdoor professionals, this handheld monocular combines strong detection performance with a pocket-friendly design that is easy to carry and quick to deploy.

At the core of the LH19 is a sensitive 384x288 VOx thermal sensor paired with a 19 mm f/1.0 lens. This setup provides a native 1.9x magnification and a wide 13.8° field of view, allowing you to spot heat signatures up to 900 meters away. With a NETD rating below 15 mK, the image remains detailed and clearly defined even in challenging conditions.

The Lynx 3.0 also features Hikmicro’s shutterless imaging system, helping maintain uninterrupted viewing during calibration. AI-powered Image Pro 3.0 and Zoom Pro processing further enhance clarity and preserve detail across the magnification range. A crisp 0.49-inch AMOLED display with 1920 x 1080 resolution ensures a sharp, high-contrast viewing experience.

Powered by a replaceable 18650 battery, the LH19 offers up to 4.5 hours of runtime at -20°C. Its rugged IP67-rated housing, Wi-Fi connectivity, and tripod compatibility make it a reliable companion for extended sessions in the field.

Key Features

• 384x288 uncooled VOx thermal sensor with 12 μm pixel pitch and 50 Hz refresh rate
• 19 mm f/1.0 germanium lens with 1.9x base magnification and up to 15.2x total magnification
• Detection range up to 900 m
• NETD sensitivity below 15 mK for excellent thermal detail
• 0.49-inch AMOLED display with 1920 x 1080 resolution
• Adjustable diopter correction from -5D to +3D
• Multiple image palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, and Green Monochrome
• Shutterless Imaging System for smooth, uninterrupted observation
• Image Pro 3.0 and Zoom Pro algorithms for improved clarity and detail retention
• IP67 water resistance for dependable outdoor performance
• Built-in Wi-Fi and 64 GB internal storage
• Tripod adapter included
• Three-step rotating eyecup for comfortable viewing

Specifications

• Sensor resolution: 384 x 288
• Pixel size: 12 μm
• Spectral range: 8–14 μm
• Lens: 19 mm
• Maximum aperture: f/1.0
• Magnification: 1.9–15.2x
• Field of view: 13.8° x 8.4°
• Field of view at 100 m: 24.2 x 14.7 m
• Close focus: 3 m
• Display size: 0.49 inch
• Exit pupil: 6 mm
• Eye relief: 20 mm
• Operating temperature: -30°C to 45°C
• Dimensions: 158.4 x 53.6 x 49.5 mm
• Weight: 331 g

In the Box

• Hikmicro Lynx 3.0 LH19 Handheld Thermal Monocular
• Battery
• Battery charger
• USB-C cable
• Microfiber cloth
• User manual
• Wrist strap
