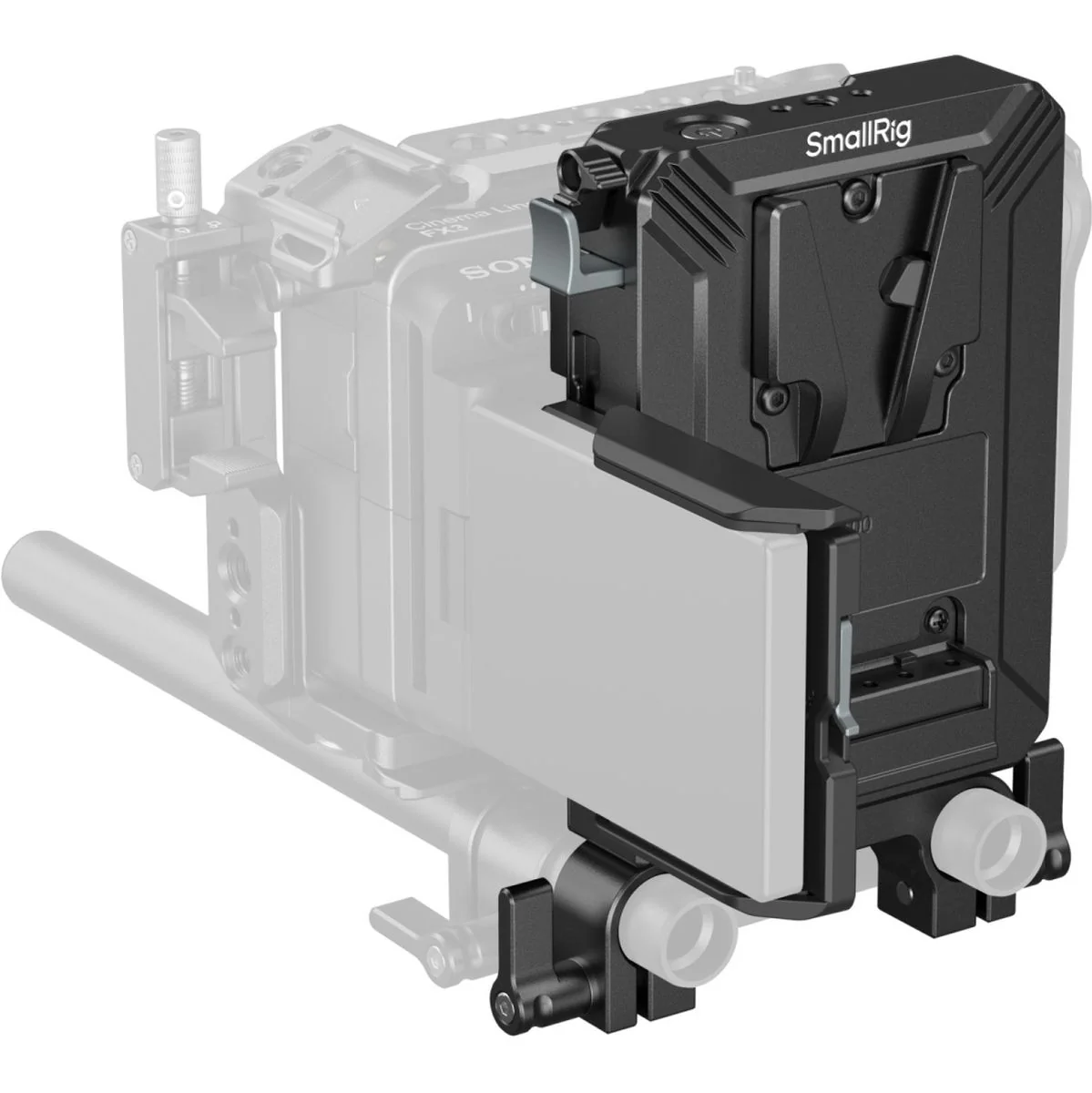

SmallRig 5226 V-Mount Battery Mount Plate Kit For 15mm LWS Rods

SmallRig 5226 V-Mount Battery Mount Plate Kit for 15mm LWS Rods

Build a cleaner, more efficient camera rig with this V-mount battery mounting kit, designed for quick integration on 15mm LWS rod systems. It combines a secure battery plate, dual rod clamps, and a modular LCD screen protector to support professional setups with better power management and added protection.

Key Features

• Fast 15mm rod mounting for easy V-mount battery placement on dual rods
• Built-in D-Tap and USB-C outputs for powering multiple devices at once
• USB-C port supports up to 65W PD input and can be used for charging the battery plate
• Safety release lever helps prevent accidental battery detachment
• Tool-free modular LCD screen protector adjusts in height and width to fit most flip-screen mirrorless cameras
• Includes cable clips and an elastic hook-and-loop strap for neat cable routing
• Multiple 1/4"-20 threaded and locating holes for attaching accessories such as magic arms, wireless transmitters, and other rigging gear

Power and Performance

The battery plate supports an external V-mount battery voltage range of 11.0V to 16.8V, with a recommended capacity between 3500 mAh and 20,000 mAh at 14.8V nominal. Each D-Tap port delivers up to 8A, with a combined maximum of 18A across all three ports. The discharge cutoff voltage is set at 11.2V for added protection during operation.

Durable Construction

Made from aluminum alloy, stainless steel, silicone, and PC + fiberglass, the kit is built to handle demanding production environments while remaining compact and lightweight. Its sturdy design helps keep your rig organized, protected, and ready for professional use.

Specifications

• Operating temperature for charging: 0°C to 45°C
• Operating temperature for discharging: -15°C to 60°C
• Dimensions: 138.5 x 107.4 x 83.0 mm
• Weight: 311 g

In the Box

• 1x V-mount battery plate
• 1x 15mm dual rod clamp
• 1x LCD screen protector
• 1x Hex key
• 1x User manual
