SmallRig 5748 FOUR-Channel Camera Battery Charger For DMW-BLK22

SmallRig 5748 Four-Channel Camera Battery Charger for DMW-BLK22

Keep your camera batteries powered and ready with this compact four-slot charger designed for DMW-BLK22 batteries. Built for busy shooting days and travel, it combines fast charging performance with smart power management in a lightweight, portable body.

Key Features

• Charge up to four DMW-BLK22 batteries at the same time for greater efficiency.
• 45W PD input delivers fast charging, with support for a wide range of USB-C power sources.
• Intelligent channel management adjusts charging based on the adapter’s output.
• Integrated short-circuit and overcurrent protection helps ensure safe, reliable charging.
• Compact design makes it easy to pack for location work, travel, or everyday use.

Charging Performance

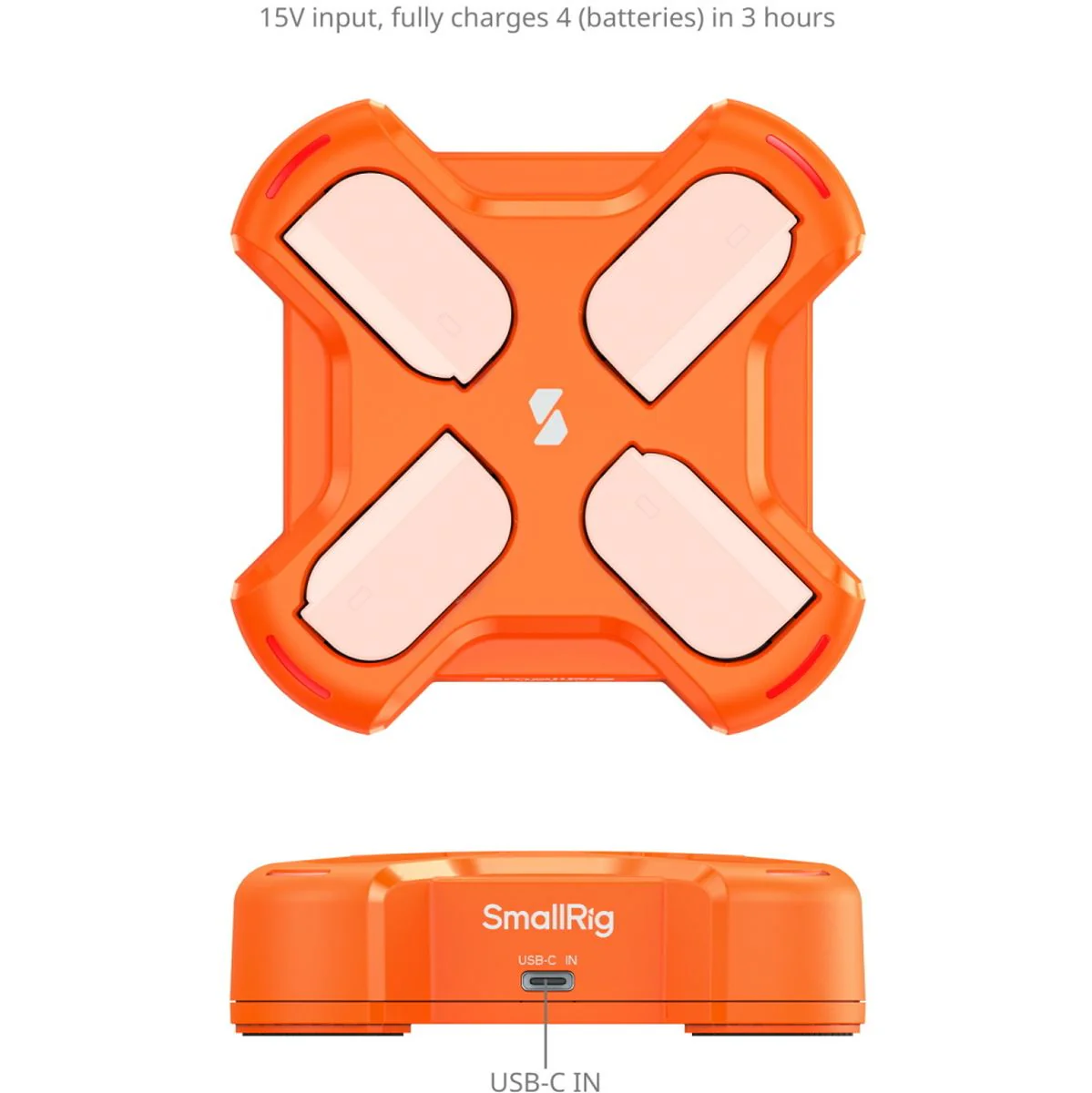

Depending on the available power, the charger can handle one, two, three, or four batteries simultaneously. With a 15V input, all four slots can charge at once, helping you stay prepared for demanding production schedules.

Compatibility

Compatible with Panasonic cameras and other models that use DMW-BLK22 batteries, including the DC-S5, DC-S5K, DC-S5II, DC-S5IIX, DC-S5M2, DC-S5M2X, DC-GH5M2, DC-GH6, DC-GH6L, and DC-GH7.

Specifications

• USB-C input: 5V/2A, 9V/2A, 12V/2A, 15V/3A
• Maximum input power: 45W
• Output per channel: 8.4V/0.9A, 8.4V/1.8A, 8.4V/2.5A
• USB-C protocol: PD
• Charge limit voltage: 8.45V
• Operating temperature: 5°C to 45°C
• Dimensions: 106.0 x 106.0 x 31.0 mm
• Weight: 136 g

In the Box

• 1x DMW-BLK22 four-channel battery charger
• 1x 65W USB-C to USB-C charging cable
• 1x User manual
