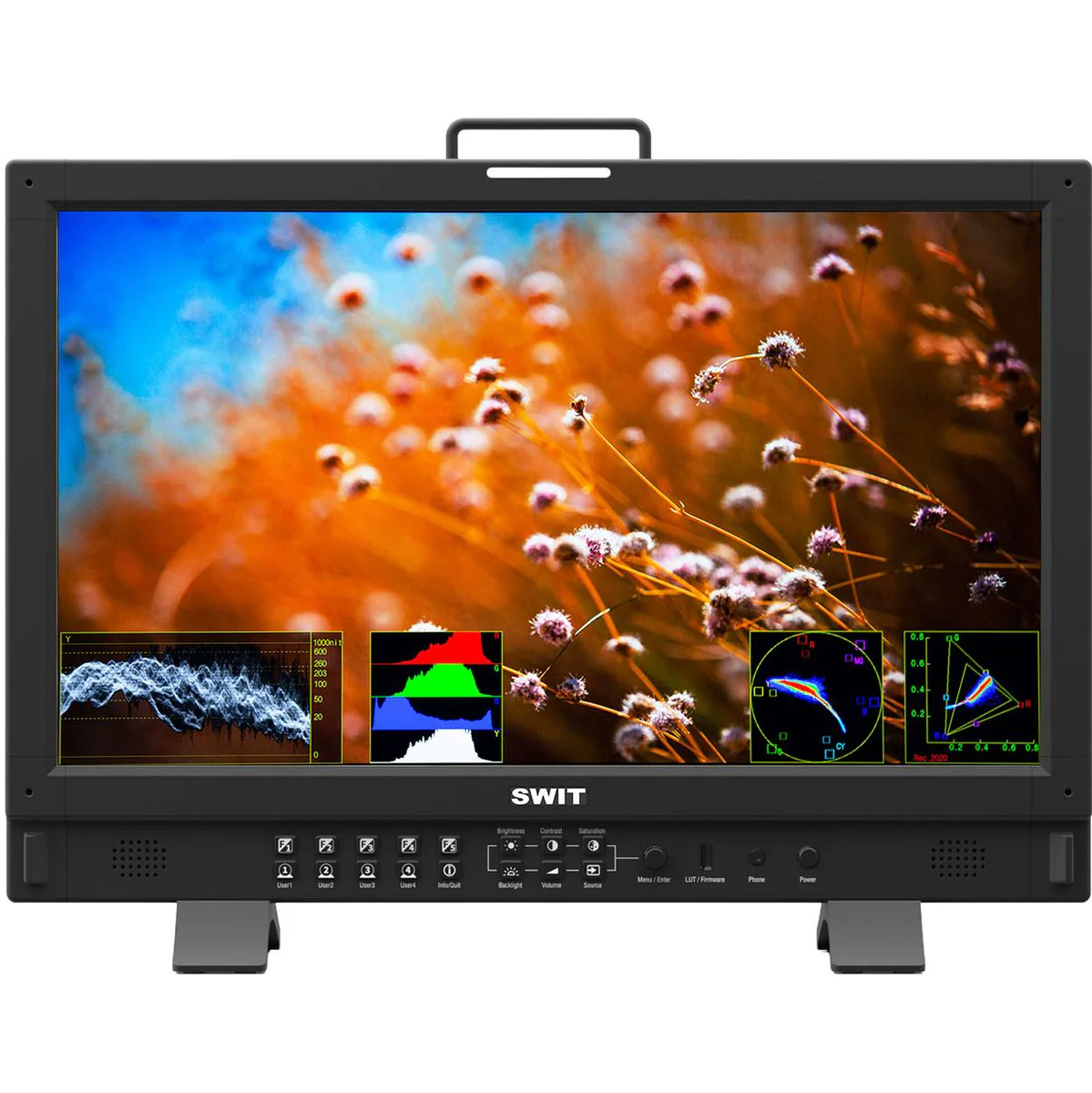

SWIT BM-H215HDR BM-H215HDR | 21.5 12G-SDI 4K QD-LED High-Bright HDR FHD Monitor
Professional 21.5-inch HDR Monitor for Broadcast and Production
The SWIT BM-H215HDR is a high-bright 21.5-inch professional Full HD monitor designed for demanding video production, live broadcasting, and HDR workflows. With a 1920 x 1080 QLED display, 1000 nits of brightness, and 100% DCI-P3 coverage, it delivers a vivid, accurate image for critical monitoring.
Flexible 4K and SDI Connectivity
This monitor supports a wide range of input formats, including 12G-SDI single-link 4K, 4x 3G-SDI quad-link 4K, and HDMI 2.0 up to 4K60P. It also features four SDI inputs and two SDI loop outputs, making it easy to integrate into complex production setups.
- 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI support
- HDMI 2.0, 1.4, and 1.3 compatibility
- Single-link and quad-link 4K input support
- 4-source multiview, plus Picture-by-Picture and Picture-in-Picture modes
Built for HDR Accuracy
The BM-H215HDR supports multiple HDR and SDR standards, including HLG, Dolby Vision PQ, and Sony S-Log3, along with gamma options from 1.0 to 2.6. It can automatically detect Payload ID information and adjust color space, gamut, input range, bit depth, and EOTF settings accordingly.
For HDR and SDR production side by side, the monitor can duplicate one source across four windows and display different gamma or HDR profiles at the same time, helping ensure a reliable reference image across workflows.
Advanced Calibration and Color Management
With built-in 3D LUT calibration software, the monitor can self-calibrate using supported probes connected directly via USB. It works with X-rite i1 and Jeti Specbos 1211 measurement tools, generating test patterns and creating a precise 3D LUT automatically.
- Auto 3D LUT calibration without a PC
- Supports 17x17x17 3D LUT cube files
- Upload custom LUTs via USB drive
- Calibration accuracy up to ?E≤1.0
Monitoring Tools for Video and Audio
To support professional on-set and studio use, the BM-H215HDR includes waveform, vector scope, histogram, and eye pattern tools, as well as focus assist, false color, and zebra overlays. It also features up to 16-channel audio meters, Lissajous display, and phase patterns for 5.1 and 7.1 surround sound checks.
- Waveform / Vector / Histogram / Eye pattern
- Focus assist / False color / Zebra
- 16-channel audio metering
- Speaker and 3.5 mm headphone output monitoring
- Eye pattern for SDI signal quality analysis
Fast, Reliable, and Easy to Control
The monitor offers zero-latency operation for accurate lip-sync monitoring, and its built-in conversion LUTs support many popular camera log formats, including Log-C, C-Log, S-Log2, S-Log3, V-Log, J-Log1, and RedLogFilm. Remote control is also available through a web browser over Ethernet, so you can manage settings without installing software.
Key Features
- 21.5-inch 1920 x 1080 QLED panel
- 1000 cd/m² high-bright HDR display
- 100% DCI-P3 wide color gamut
- VICO 1.97 A-class eye-comfort display
- 18-bit internal color processing
- Automatic Payload ID detection
- TSL UMD and text display support
- Firmware updates via USB
- Dimensions: 530.6 x 364.3 x 74.2 mm
- Weight: 6.05 kg
Package Contents
1x SWIT BM-H215HDR 21.5-inch 12G-SDI 4K QD-LED High-Bright HDR Professional FHD Monitor
