SWIT CL-M100D CL-M100D | Mini Size Bright Bi-Colour Panel Light

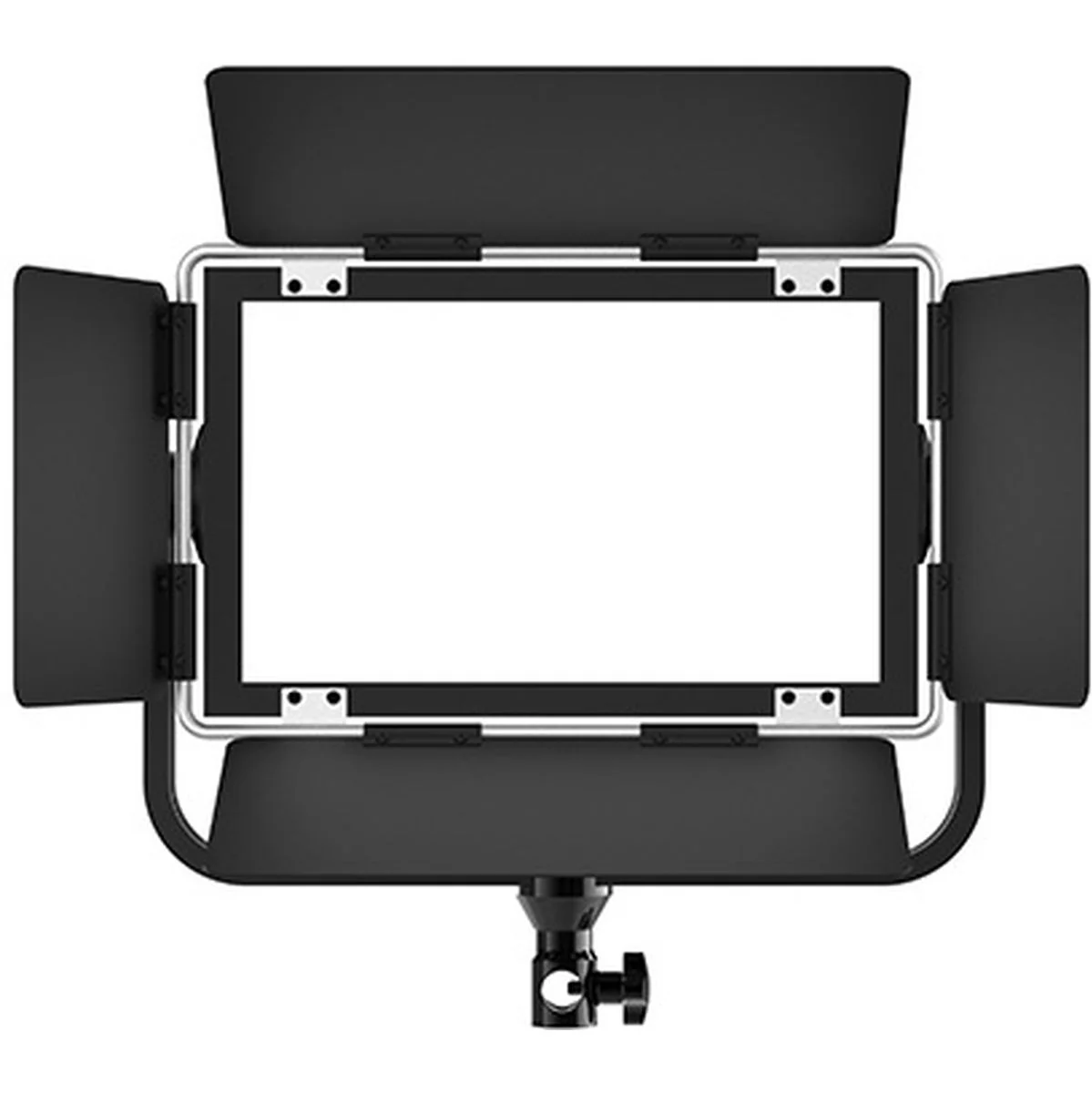

SWIT CL-M100D Mini Bi-Colour Panel Light
The SWIT CL-M100D is a compact yet powerful bi-colour LED panel designed for professional video and photography work. With 576 SMD LEDs, it produces a smooth, even beam that looks soft on subjects while still delivering impressive brightness.
This light offers 100W output and reaches 3400 lux at 1 metre, with a wide 62° beam angle for flexible lighting setups. The colour temperature is continuously adjustable from 2700K to 6500K, making it easy to switch between warm and daylight tones to match your scene.
Built for accurate colour rendering, the CL-M100D delivers a CRI of 98 and TLCI of 99, helping skin tones and product colours appear natural and consistent. Its PWM dimming range from 0 to 100% provides smooth, flicker-free control for both stills and video.
The fanless design keeps operation completely silent, making this panel ideal for interviews, studios, live productions, and other sound-sensitive environments. Large heat sinks help maintain strong performance in a compact body without adding noise.
On the rear, an LCD display clearly shows dimming level, colour temperature, DMX address, group channel, and power status. The light also supports DMX512 control for integration into more advanced lighting setups.
Key Features
- 576 high-output SMD LEDs for bright, even illumination
- Bi-colour range from 2700K to 6500K
- 100W output with 3400 lux at 1 metre
- Wide 62° beam angle for versatile coverage
- CRI 98 and TLCI 99 for highly accurate colour reproduction
- 0–100% flicker-free PWM dimming
- Silent fanless cooling design
- DMX512 control for colour and dimming
- Rear LCD display for easy status monitoring
- PowerCON TRUE1 AC input and loop output
- 4-pin XLR DC input, 11–17V
- Metal 4-leaf barn doors and yoke bracket included
Specifications
- Lighting surface: 245 x 146 mm
- Dimensions: 275 x 173 x 130 mm
- Weight: 5.6 kg
Package Includes
- 1x SWIT CL-M100D Mini Bi-Colour Panel Light
- 2x Safety cables
- 1x PowerCON TRUE1 power cable
SWIT CL-M100D CL-M100D | Mini Size Bright Bi-Colour Panel Light
SWIT CL-M100D Mini Bi-Colour Panel Light
The SWIT CL-M100D is a compact yet powerful bi-colour LED panel designed for professional video and photography work. With 576 SMD LEDs, it produces a smooth, even beam that looks soft on subjects while still delivering impressive brightness.
This light offers 100W output and reaches 3400 lux at 1 metre, with a wide 62° beam angle for flexible lighting setups. The colour temperature is continuously adjustable from 2700K to 6500K, making it easy to switch between warm and daylight tones to match your scene.
Built for accurate colour rendering, the CL-M100D delivers a CRI of 98 and TLCI of 99, helping skin tones and product colours appear natural and consistent. Its PWM dimming range from 0 to 100% provides smooth, flicker-free control for both stills and video.
The fanless design keeps operation completely silent, making this panel ideal for interviews, studios, live productions, and other sound-sensitive environments. Large heat sinks help maintain strong performance in a compact body without adding noise.
On the rear, an LCD display clearly shows dimming level, colour temperature, DMX address, group channel, and power status. The light also supports DMX512 control for integration into more advanced lighting setups.
Key Features
- 576 high-output SMD LEDs for bright, even illumination
- Bi-colour range from 2700K to 6500K
- 100W output with 3400 lux at 1 metre
- Wide 62° beam angle for versatile coverage
- CRI 98 and TLCI 99 for highly accurate colour reproduction
- 0–100% flicker-free PWM dimming
- Silent fanless cooling design
- DMX512 control for colour and dimming
- Rear LCD display for easy status monitoring
- PowerCON TRUE1 AC input and loop output
- 4-pin XLR DC input, 11–17V
- Metal 4-leaf barn doors and yoke bracket included
Specifications
- Lighting surface: 245 x 146 mm
- Dimensions: 275 x 173 x 130 mm
- Weight: 5.6 kg
Package Includes
- 1x SWIT CL-M100D Mini Bi-Colour Panel Light
- 2x Safety cables
- 1x PowerCON TRUE1 power cable
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SWIT CL-M100D Mini Bi-Colour Panel Light
The SWIT CL-M100D is a compact yet powerful bi-colour LED panel designed for professional video and photography work. With 576 SMD LEDs, it produces a smooth, even beam that looks soft on subjects while still delivering impressive brightness.
This light offers 100W output and reaches 3400 lux at 1 metre, with a wide 62° beam angle for flexible lighting setups. The colour temperature is continuously adjustable from 2700K to 6500K, making it easy to switch between warm and daylight tones to match your scene.
Built for accurate colour rendering, the CL-M100D delivers a CRI of 98 and TLCI of 99, helping skin tones and product colours appear natural and consistent. Its PWM dimming range from 0 to 100% provides smooth, flicker-free control for both stills and video.
The fanless design keeps operation completely silent, making this panel ideal for interviews, studios, live productions, and other sound-sensitive environments. Large heat sinks help maintain strong performance in a compact body without adding noise.
On the rear, an LCD display clearly shows dimming level, colour temperature, DMX address, group channel, and power status. The light also supports DMX512 control for integration into more advanced lighting setups.
Key Features
- 576 high-output SMD LEDs for bright, even illumination
- Bi-colour range from 2700K to 6500K
- 100W output with 3400 lux at 1 metre
- Wide 62° beam angle for versatile coverage
- CRI 98 and TLCI 99 for highly accurate colour reproduction
- 0–100% flicker-free PWM dimming
- Silent fanless cooling design
- DMX512 control for colour and dimming
- Rear LCD display for easy status monitoring
- PowerCON TRUE1 AC input and loop output
- 4-pin XLR DC input, 11–17V
- Metal 4-leaf barn doors and yoke bracket included
Specifications
- Lighting surface: 245 x 146 mm
- Dimensions: 275 x 173 x 130 mm
- Weight: 5.6 kg
Package Includes
- 1x SWIT CL-M100D Mini Bi-Colour Panel Light
- 2x Safety cables
- 1x PowerCON TRUE1 power cable
