SWIT LB-SU98 LB-SU98 | 98WH/6.8AH U-Typebp-U DV Battery For Sony PXW-Z190/Z280

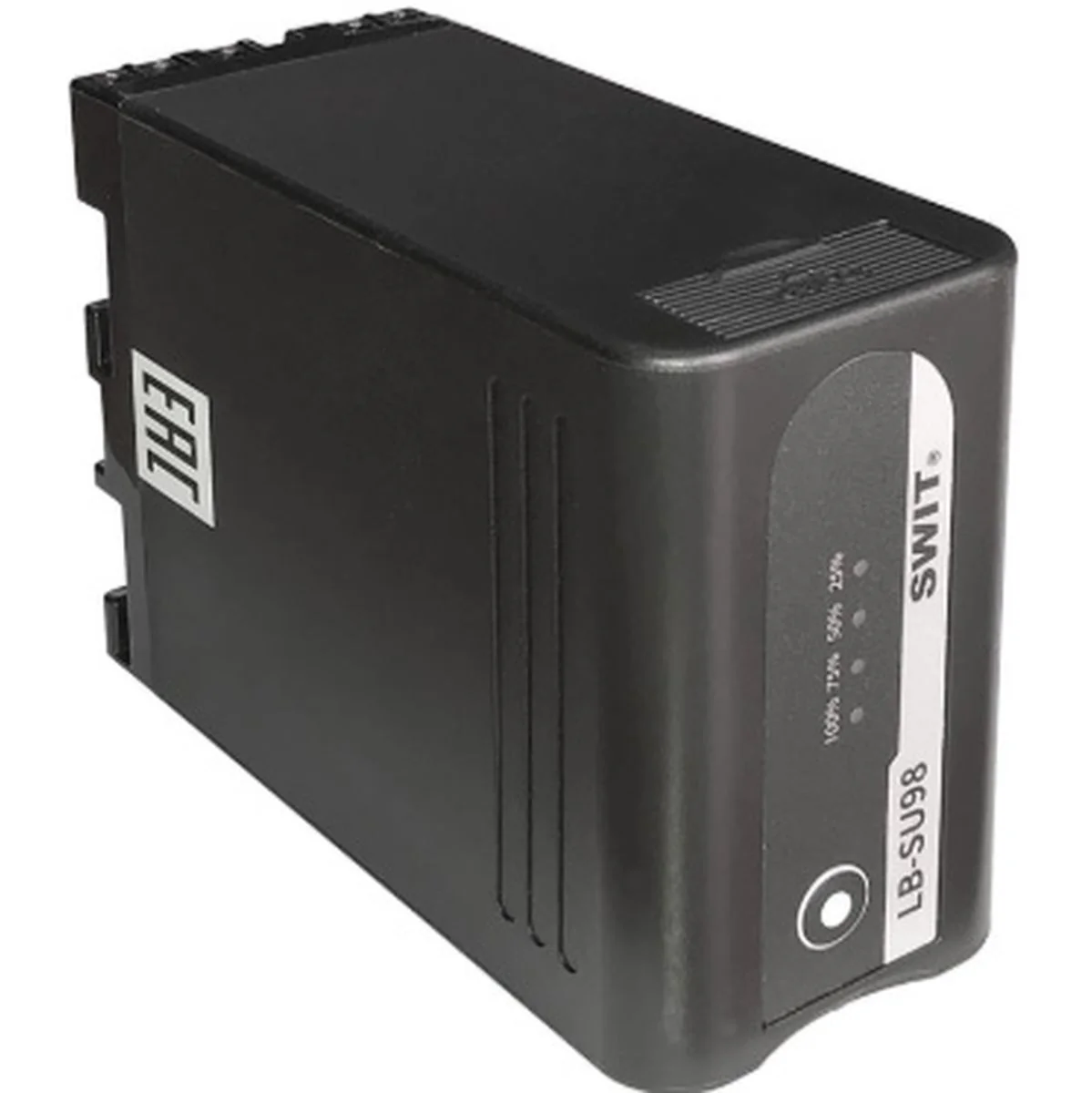

SWIT LB-SU98 Battery Pack for Sony BP-U Cameras
The SWIT LB-SU98 is a powerful Li-ion battery pack designed for Sony BP-U compatible camcorders and selected Blackmagic cameras. With a 14.4V nominal voltage and 98Wh / 6.8Ah capacity, it delivers dependable runtime for demanding shoots, including around 3 hours of operation on the Sony PXW-FX9.
Built for versatility, the LB-SU98 includes a D-tap DC output that lets you power accessories such as an LED light, monitor, or wireless transmitter while your camera stays powered at the same time. The D-tap port can also be used as a charging input with the optional SWIT PC-U130B/B2 portable charger.
A built-in USB output makes it easy to charge mobile devices like smartphones and tablets. Simply connect your device and press the power check button to activate 5V/2A USB charging. Four LED indicators provide a clear view of the remaining battery level at a glance.
Key Features
- Li-ion battery with 14.4V nominal voltage
- Compatible with Sony BP-U batteries and many BP-U camera models
- 98Wh / 6.8Ah capacity
- Built-in 14.4V D-tap output / charging input
- Built-in 5V / 2A USB output
- 4-stage LED power indicator
- Multiple circuit protection for added safety
- Camera battery information support on some newer models
- Compatible with Blackmagic PYXIS 6K
Compatible Cameras
- Sony PXW-FX6
- Sony PXW-FX9
- Sony PXW-FS5
- Sony PXW-FS7
- Sony PXW-Z200
- Sony HXR-NX800
- Sony PXW-Z280
- Sony PXW-Z190
- Sony PXW-X280
- Blackmagic PYXIS 6K
Charging and Performance
The LB-SU98 can be charged with the separately available SWIT S-3602U dual charger or LC-D421 four-channel charger. For faster charging, the optional SWIT PC-U130B/B2 portable D-tap charger can also be used. Charging times are approximately 4 hours and 30 minutes with the S-3602U or LC-D421, and around 2 hours and 50 minutes with the PC-U130B/B2.
Technical Specifications
- Maximum output power: 70W, 6A
- D-tap output: 70W, 6A
- USB output: 10W, 5V/2A
- Charging temperature: 0 to 40°C
- Discharging temperature: -20°C to 50°C
- Dimensions: 70 x 42 x 96 mm
- Weight: 464 g
In the Box
- 1x SWIT LB-SU98 Battery Pack for Sony BP-U Camcorders
