Tilta WLC-T05 Nucleus Nano II Wireless Lens Control System
The Tilta WLC-T05-K1 Nucleus Nano II Wireless Lens Control System Kit I
With the capability of managing up to four different control channels, including support for gimbals, the Tilta WLC-T05-K1 Nucleus Nano II Wireless Lens Control System Kit I is a premier choice for demanding cinematography. This comprehensive package comprises the Nano II Handwheel Controller and the Power Handle, along with two Lens Control Motor Kits and a variety of mounting and power accessories. These elements can be assembled as per the requirements, whether it sights at solo-operation shoulder rig, follow focus work with a monitor, or remote controlling DJI RS 2 and RS 3 Pro gimbals with an optional Wireless Receiver Module. The included Power Handle Kit is designed to engender versatility in every shoot.

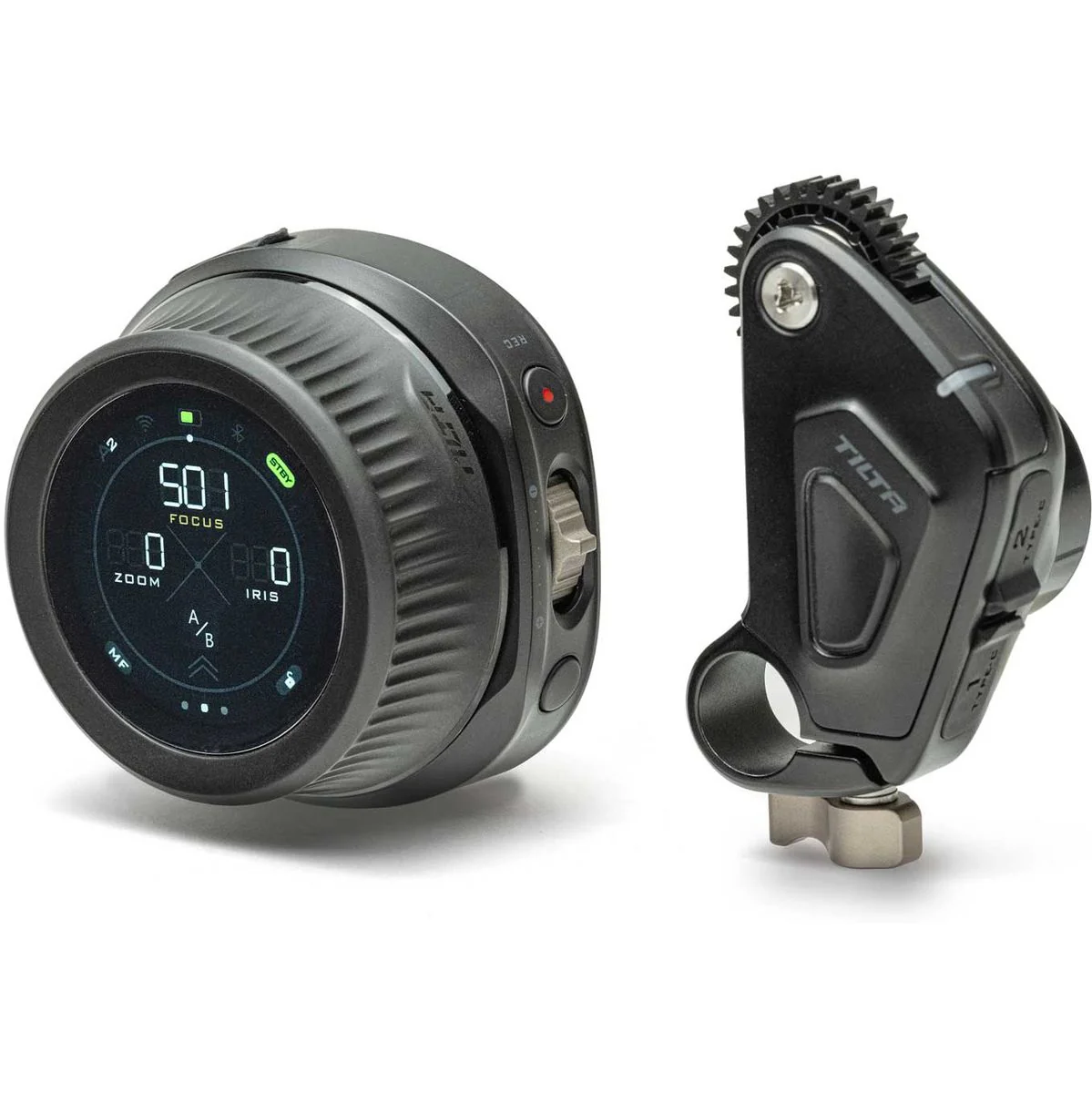

The controller of this system is equipped with a 1.6" touchscreen knob placed externally, letting you glance over the wireless channel, Wi-Fi status, battery life, Bluetooth connectivity, and standby status. Live focus, iris, and zoom parameters with A/B stops are displayed in the middle section, with options to lock the screen or switch between automatic and manual focus modes. There are two additional menus accessible from the main screen: one for camera settings adjustments and lock, and the other for viewing current lens parameters. The Handwheel Controller includes additional options for pairing and manually controlling the Control Motors and modifying the Handwheel Controller’s settings.
The Power Handle supplies power to the Handwheel Controller through an optional separate Sony L-series battery like NP-F550 or NP-570 - resulting in extended battery life. It also lets users power accessories via integrated USB-C and DC power outputs. The handle is equipped with a 1/4"-20 screw thread with localization points, which works perfectly for mounting the Tilta Right-Angle Rosette Adapter—allowing seamless integration into a shoulder rig setup. A cold shoe receiver is present at the top which can be used with an additional holder for an external monitor or other accessories.
Key Features of the Tilta WLC-T05-K1 Nucleus Nano II Wireless Lens Control System Kit I
- Allows camera communications to adjust settings like ISO, shutter speed, and frame rate via Wi-Fi, Bluetooth, and USB-C.
- The handwheel can control multiple motors, with extension options supporting up to 4 motors when used with the control handle (optional).
- Lens mapping showcases real-time focal length data for more accurate focus pulling.
- Compatible with Nucleus M, Nano, DJI Focus Motors, DJ Ronin S Series Gimbals, and cameras from Canon, Sony, and Blackmagic Design.
- A touchscreen display facilitates easy access to advanced functions and streamlines the on-set workflow.
- Receiver/Motor Dimensions (HxWxD): 15.2 x 12.7 x 10.2 cm.
- Weight of the Receiver/Motor: 454 grams.
- Dimensions of the Transmitter/Controller: 73 x 72 x 53 mm.
- Weight of the Transmitter/Controller: 175 grams.
Package Contents
- 1x Nucleus Nano II Handwheel Controller
- 1x Nucleus Nano II Power Handle
- 2x Nucleus Nano II Motor Kit
- 2x Photographic Lens Follow Focus Gear Ring
- 2x USB-C Power Cable (30cm)
- 1x P-Tap to USB-C Power Cable (50cm)
- 2x Aluminum Rod 15x150mm (black)
- 1x 15mm Rod mount to Dual 1/4"-20 Adapter (black)
- 1x Advanced Soft Carrying Case for Nucleus Nano II
- 1x Tilta Rubber Rod Support
- 1x Tilta Accessory Mounting Bracket (1/4"-20 with Positioning Pins) (black)
- 1x Tilta F970 Battery Plate V2 (black)
- 2x Allen Key
- 1x User Manual
Original: $704.09
-65%$704.09
$246.43Tilta WLC-T05 Nucleus Nano II Wireless Lens Control System
