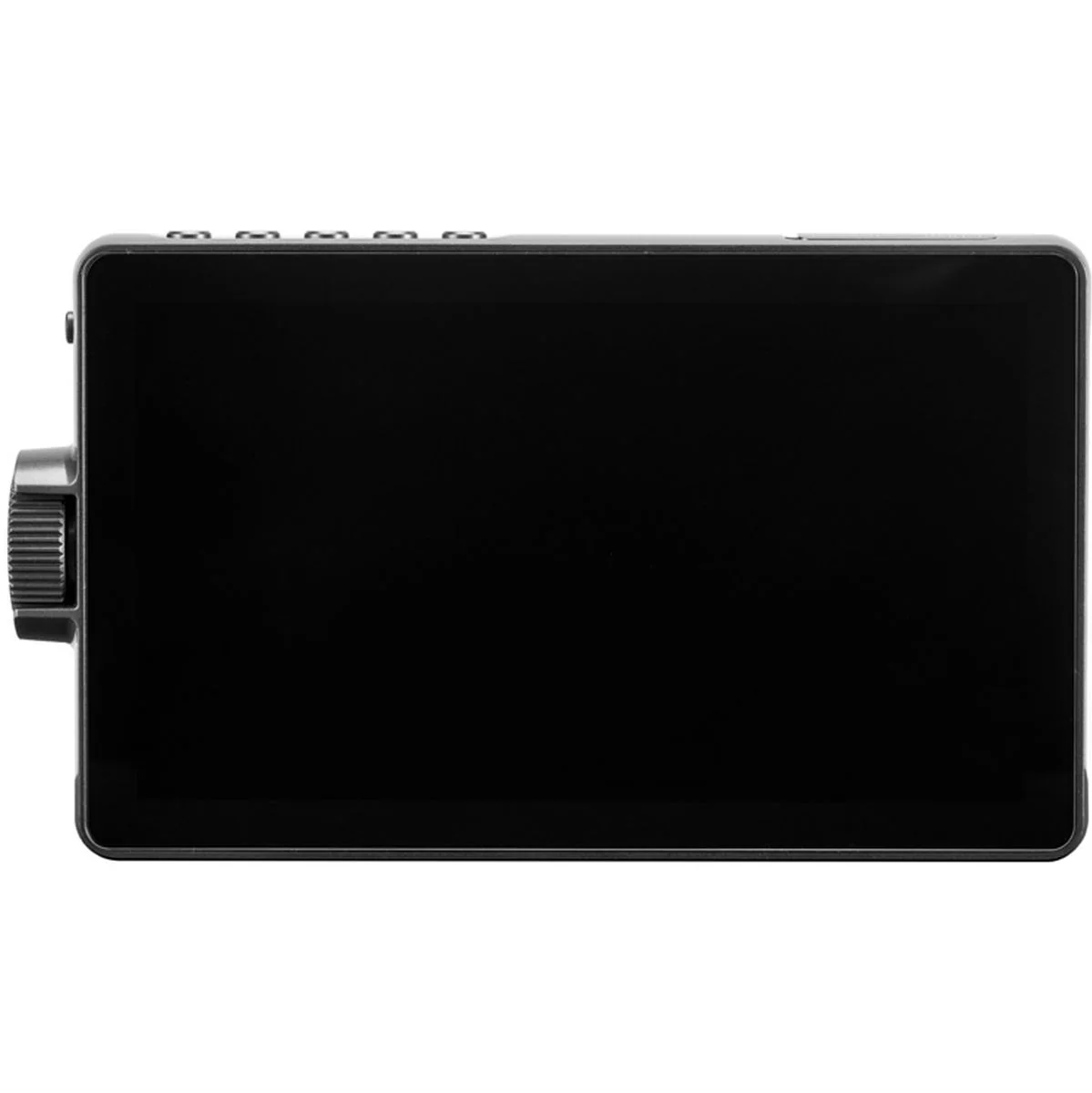

Viltrox DC A1 7 Super Bright Monitor

Viltrox DC-A1 7" Super Bright Monitor

The Viltrox DC-A1 is a 7-inch ultra-bright HD touchscreen monitor built for filmmakers and photographers who need dependable visibility on set. With a powerful 2800 cd/m² panel, it stays easy to read even in harsh sunlight and challenging outdoor conditions.

Designed for precise image control, this monitor includes helpful production tools such as focus peaking, zebra patterns, waveform monitoring, and anamorphic de-squeeze preview. It also supports custom LUT loading, making it easier to maintain consistent color from capture through post-production.

Built for Clear, Accurate Monitoring

The Full HD IPS display delivers sharp detail, wide viewing angles, and natural-looking color. Its touchscreen interface and intuitive layout make operation fast and efficient, while one-handed control helps keep your workflow moving during busy shoots.

With 4K 60Hz signal support, the DC-A1 provides smooth, high-quality transmission for reliable monitoring. The combination of bright output, rich color, and responsive performance makes it a strong choice for professional video production.

Key Monitoring Features

• Ultra-bright 2800 cd/m² display for excellent outdoor visibility
• Focus peaking for faster and more accurate manual focusing
• Zebra pattern display for precise exposure checking
• Waveform tools for tonal and color balance analysis
• Custom LUT import and storage via USB-A
• Anamorphic de-squeeze preview
• Touchscreen control with a user-friendly interface
• One-tap access to essential monitoring functions

Display and Performance

• 7-inch IPS touchscreen
• Resolution: 1920 x 1080
• Aspect ratio: 16:9
• Contrast ratio: 1000:1
• Refresh rate: 60 Hz
• Viewing angle: 170°
• Pixel density: 316 PPI
• Color gamut: sRGB
• Color depth: 8-bit
• 4K signal input and loop-out support up to 4K 60Hz

Practical Design for the Field

The monitor includes active cooling with a quiet fan and built-in temperature sensing, helping maintain stable performance during long shoots. A quick-release sun hood is also included to reduce glare and improve viewing in bright environments.

Compact and lightweight, the DC-A1 is easy to mount, carry, and integrate into a professional camera setup. The protective hood design also helps shield the screen when not in use.

Specifications

• Input: HDMI 2.0 IN
• Output: HDMI 2.0 OUT
• USB interface: USB upgrade and 3D LUT file support
• Audio output: 3.5 mm headphone jack
• Power input: DC 10V-18V-2A
• Type-C power: >9V-3A (9V/12V/15V/20V-3A)
• Compatible batteries: NP-F550 / F750 / F970 lithium batteries
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 60°C
• Dimensions: 187.8 x 110.5 x 28.5 mm
• Weight: 348 g

What’s in the Box

• 1x DC-A1 monitor
• 1x hard carrying case
• 1x custom tilt-and-swivel mount
• 1x NP-F550 battery
• 1x quick-release sun hood
• 1x custom screen protector
• 1x HDMI cable
• 1x mini-HDMI cable
• 1x electronic manual
• 1x USB-C power cable
